| ブランド名: | wxjq |
| モデル番号: | KF665 |
| MOQ: | 1セット |
| 価格: | USD |
| 納期: | 25日 |
| 支払い条件: | LC、T/T |
Kraftformer 665 Application :
Characteristic:
Service And Maintenance:
Technical Paramter:
| Throat depth | 665mm | |
| Opening height between the connecting face of the upper and lower dies |
160～ 198 mm
|
|
| Stroke of plunger | 8 mm | |
| Plunger in feed adjustment | 80 mm | |
| Plunger punching frequency | 0～ 600 timeses/ min | |
| Max thickness of sheet the machine is capable of forming | ||
| Steel sheet ((s= 400 MPa) | 6 mm | |
| Aluminum sheet((s= 250 MPa) | 8mm | |
| Copper sheet((s= 250 MPa) | 8 mm | |
| Stainless steel sheet ((s= 600 MPa) | 4 mm | |
| Main motor | type | capacity |
| AYP-50-4.0-2-B5-A | 4.5 kw | |
| In-Feeding motor | type | capacity |
| SWF80YEJ63-0.25-42.88 V11 | 250 w | |
| Machine weight | Net weight | Gross weight |
| 2542 kg | 2700 kg | |
|
Overall dimensions (L×W×H) |
2580×1321×2400 | |
| Power supply | 3～380V 50 Hz | |
Warranty And Service:
one year warranty for whole press.
all spare parts are available as we produce most of the parts in our factory.
it is easy to get the electric parts as all are international famous brands.
we can provide technical support via email, phone or video.
we can send out engineers for service, installation or training with reasonable additional cost.
English operation and maintenance manual is provided with the press.
All safety warning tags and control panels are in English

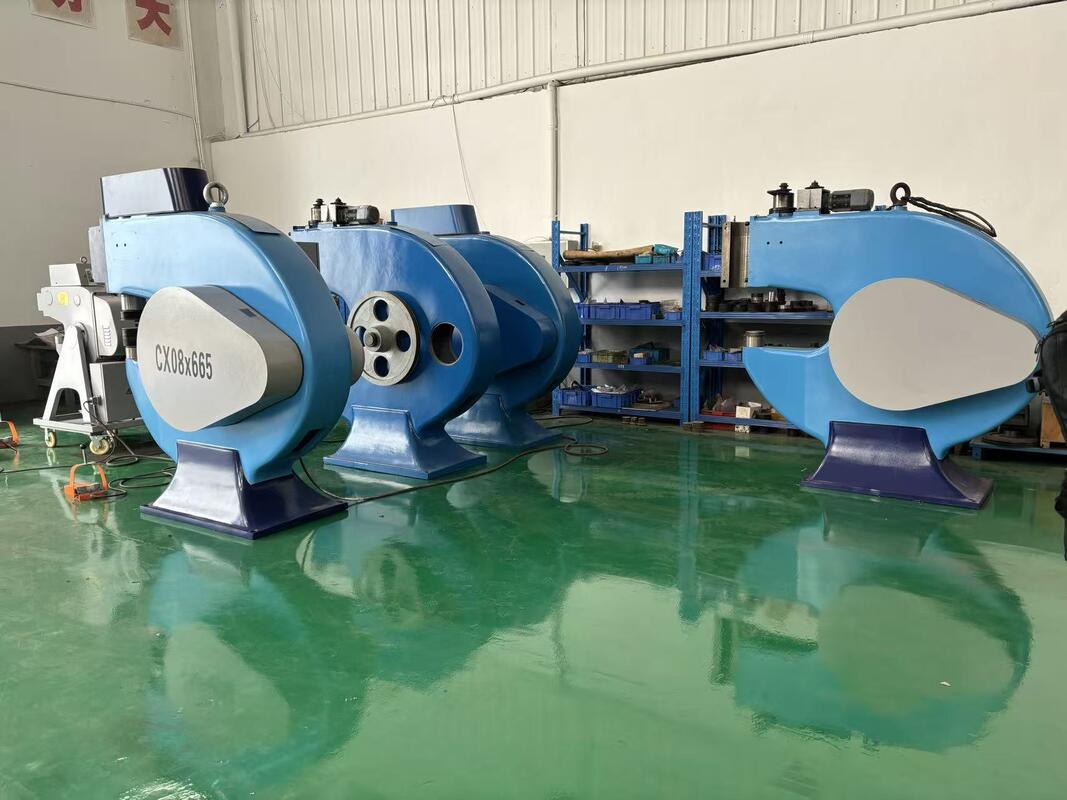

Machine Photo:
